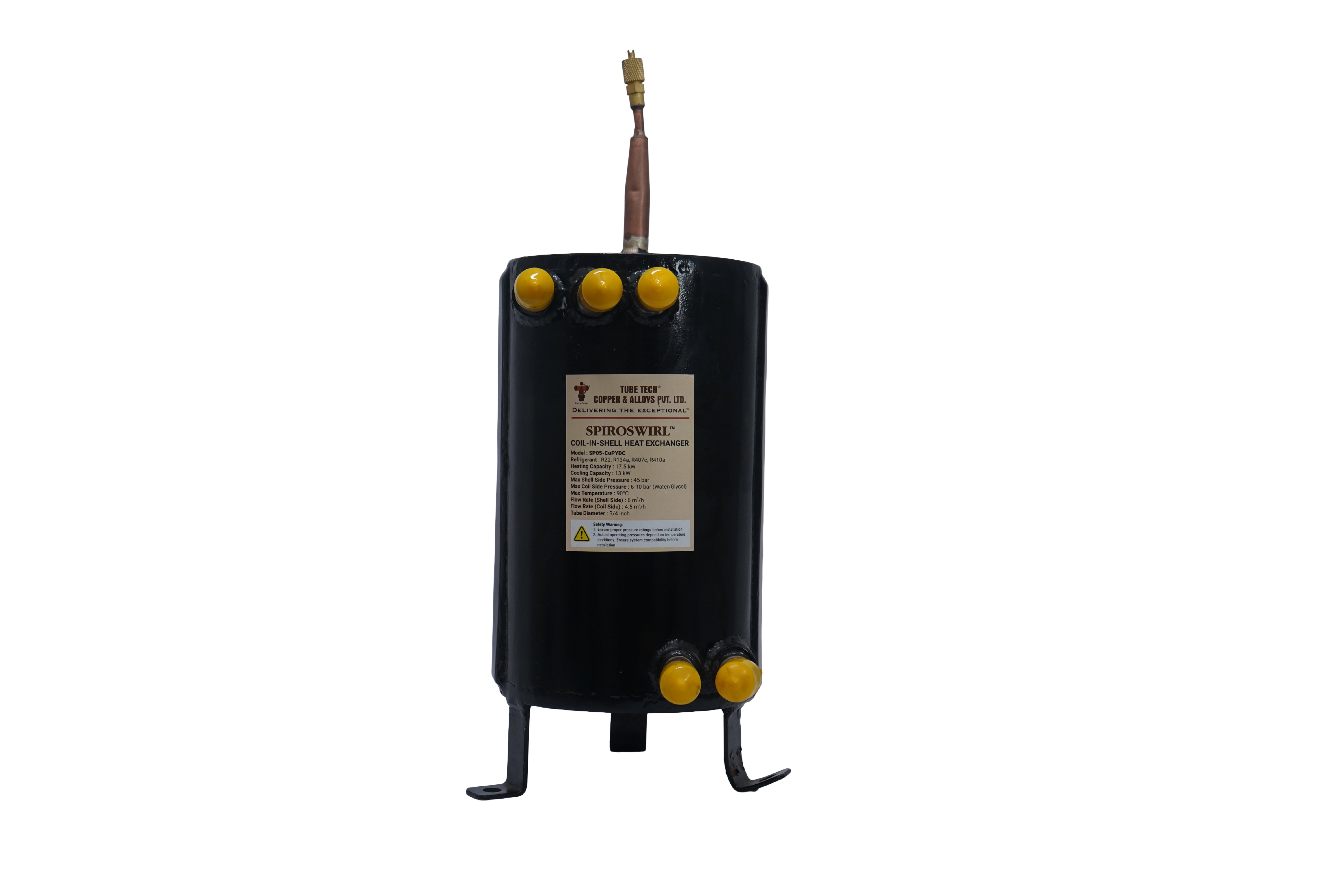

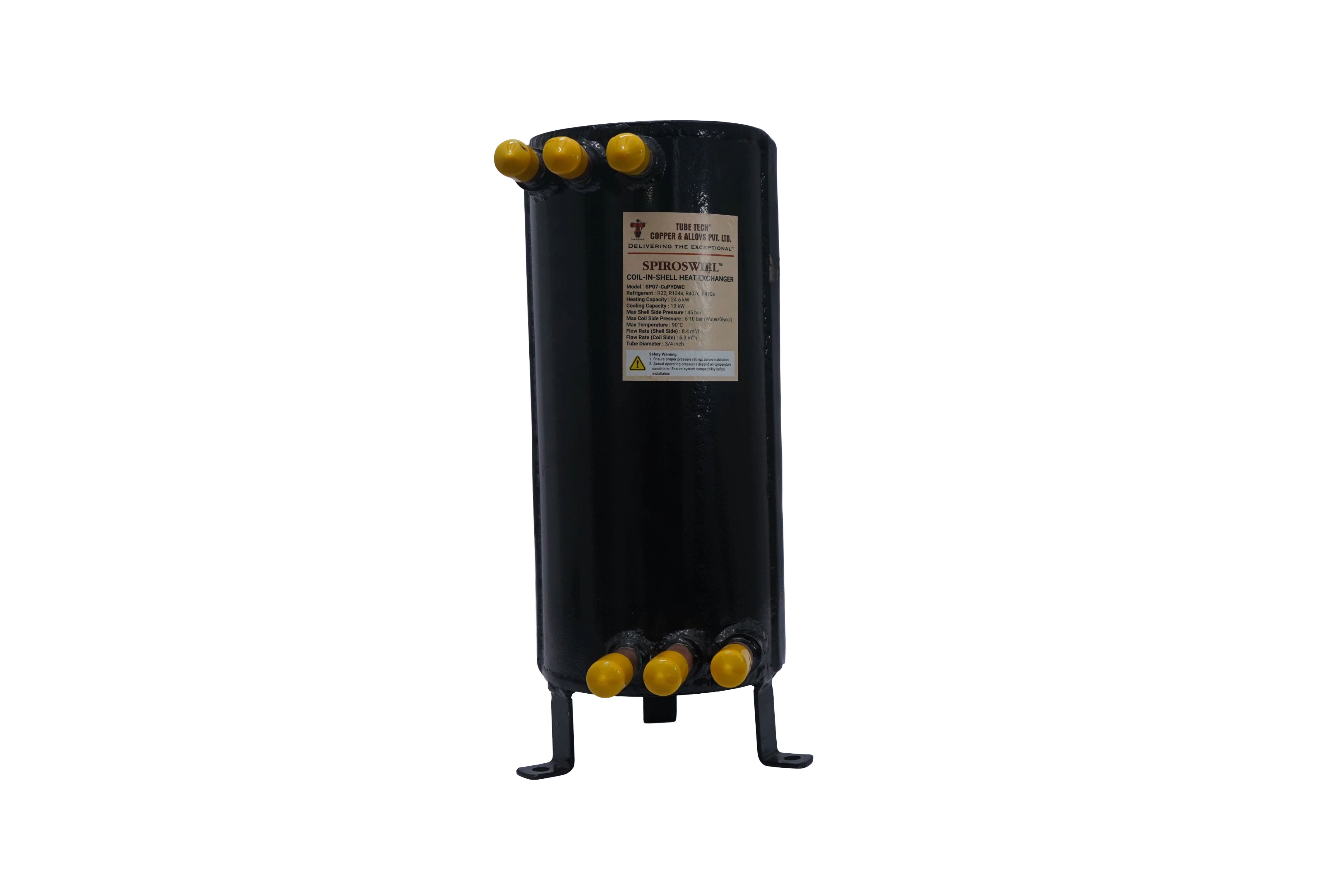

SpiroSwirl™ Coil-in-Shell
High-Efficiency Helical Coil Heat Exchangers for Compact Thermal Systems
Tube Tech® SpiroSwirl™ Coil-in-Shell units feature precision-formed helical coils housed inside a robust shell, engineered to deliver superior heat transfer in compact footprints.
The swirling flow path increases turbulence, enhances thermal exchange, and minimizes fouling - making them ideal for high-performance heating, cooling, and process applications. These highly Efficient Liquid to Refrigerant Heat Exchangers can be used in any application where air or water must be heated or cooled.
Operating Parameters
Refrigerant Side:
• Max Working Pressure: 52 Bar (5.2 Mpa)
• Temperature Range: -50°C to 150°C
• Medium: R22, R134a, R407c, R410a
Water Side:
• Max Working Pressure: 32 Bar (3.2 Mpa)
• Temperature Range: -30°C to 90°C
• Medium: Domestic water, Ground water, Anti-Freeze (Glycol) water
Construction Details
Tubing: Low fin tubes with/without internal grooves as per grade SB359, IS 1545 - Cu-DHP / CuNi10Fe1 / CuNi30Mn1Fe
Shell: Carbon steel S235 or equivalent
Testing: All heat exchangers tested at up to 60 Bar test pressure after assembly
Standards: Complies with ASME Section VIII, IS 2825, EN13445
SpiroSwirl™ Coil-in-Shell - Model Performance Table
| Model | Model No. | Heating | Cooling | Water Flow | Gas Nozzle | Pressure Drop |
|---|---|---|---|---|---|---|
| 1 TR | SP01-CuPYSWC / SP01-CuPYSC | 3.5 kW | 2.5 kW | 0.7 m³/h | 19.05 mm | 11 Kpa |
| 2 TR | SP02-CuPYSWC / SP02-CuPYSC | 7 kW | 5 kW | 1.0 m³/h | 19.05 mm | 60 Kpa |
| 3 TR | SP03-CuPYSWC / SP03-CuPYSC | 10.5 kW | 7.6 kW | 1.8 m³/h | 19.05 mm | 74 Kpa |
| 4 TR | SP04-CuPYSWC / SP04-CuPYSC | 14 kW | 10.1 kW | 2.2 m³/h | 19.05 mm | 31 Kpa |
| 5 TR | SP05-CuPYDWC / SP05-CuPYDC | 17.5 kW | 13 kW | 3.0 m³/h | 19.05 mm | 57 Kpa |
| 6 TR | SP06-CuPYDWC / SP06-CuPYDC | 21 kW | 16 kW | 3.6 m³/h | 19.05 mm | 76 Kpa |
| 7 TR | SP07-CuPYDWC / SP07-CuPYDC | 24.6 kW | 19 kW | 4.0 m³/h | 19.05 mm | 88 Kpa |
| 8 TR | SP08-CuPYDWC / SP08-CuPYDC | 28 kW | 21 kW | 4.3 m³/h | 19.05 mm | 75 Kpa |
| 10 TR | SP10-CuPZDWC / SP10-CuPYDC | 35 kW | 26.5 kW | 5.0 m³/h | 19.05 mm | 87 Kpa |
| 12 TR | SP12-CuPZDWC / SP12-CuPZDC | 47 kW | 35 kW | 6.5 m³/h | 25.4 mm | 56 Kpa |
| 15 TR | SP15-CuPZDWC / SP15-CuPZDC | 54 kW | 42 kW | 7.2 m³/h | 25.4 mm | 96 Kpa |
Key Features
- • Helically wound coil design for increased turbulence & thermal efficiency
- • Compact shell design enabling high capacity in limited space
- • Reduced fouling and optimised flow distribution
- • Excellent performance with water, steam, oils, coolants & process fluids
- • Manufactured with tight dimensional accuracy & controlled coil pitch
- • Available in copper tubing, stainless steel, CuproNickel & carbon steel
- • Custom coil geometry and shell configurations available
- • Suitable for use as condenser or evaporator
- • Enhanced surface tubes provide surface extension of more than 3.5 times that of smooth tubing
- • Internal rifling ensures water turbulence even at low flow rates
- • No oil trapping due to close tolerances in refrigerant path
- • Low water side pressure drop reduces pump size and operating costs
- • Continuous water coils with no internal joints for more strength and less chance of leaks
- • Compact cylindrical shape easy to insulate
- • Works efficiently in both vertical and horizontal positions
Applications
Hot Water Generators
Oil Cooling Units
Industrial Chillers
Process Heat Exchangers
Steam-to-Water Systems
Water-source Air Conditioner
Industry Chiller
Air-source Heat Pump
Water-source Heat Pump
Refrigeration Units
Marine Application - Condensing Units
Computer Room Air Condensing Units
